An automatic tiling system for applying adhesive and laying tiles on horizontal elements. Handles various patterns and sizes with high precision. An integrated drying station ensures tiles are ready for the next production step without delays.

  • Automated tiling. Glues and mounts tiles on horizontal elements, removing manual tile work from the production line. Less labor, more output, and consistent quality across every element.
  • Flexible patterns and sizes. Supports various tile patterns, layouts, and tile sizes within the same production run.
  • Precision placement. Vision system ensures accurate tile positioning for a consistent, high quality finish.
  • Integrated drying station. Available in light and heavy variants with 10 slots each. Elements are dried and ready for the next production step without delays, keeping the line moving.
Modutile
Modutile

System Components

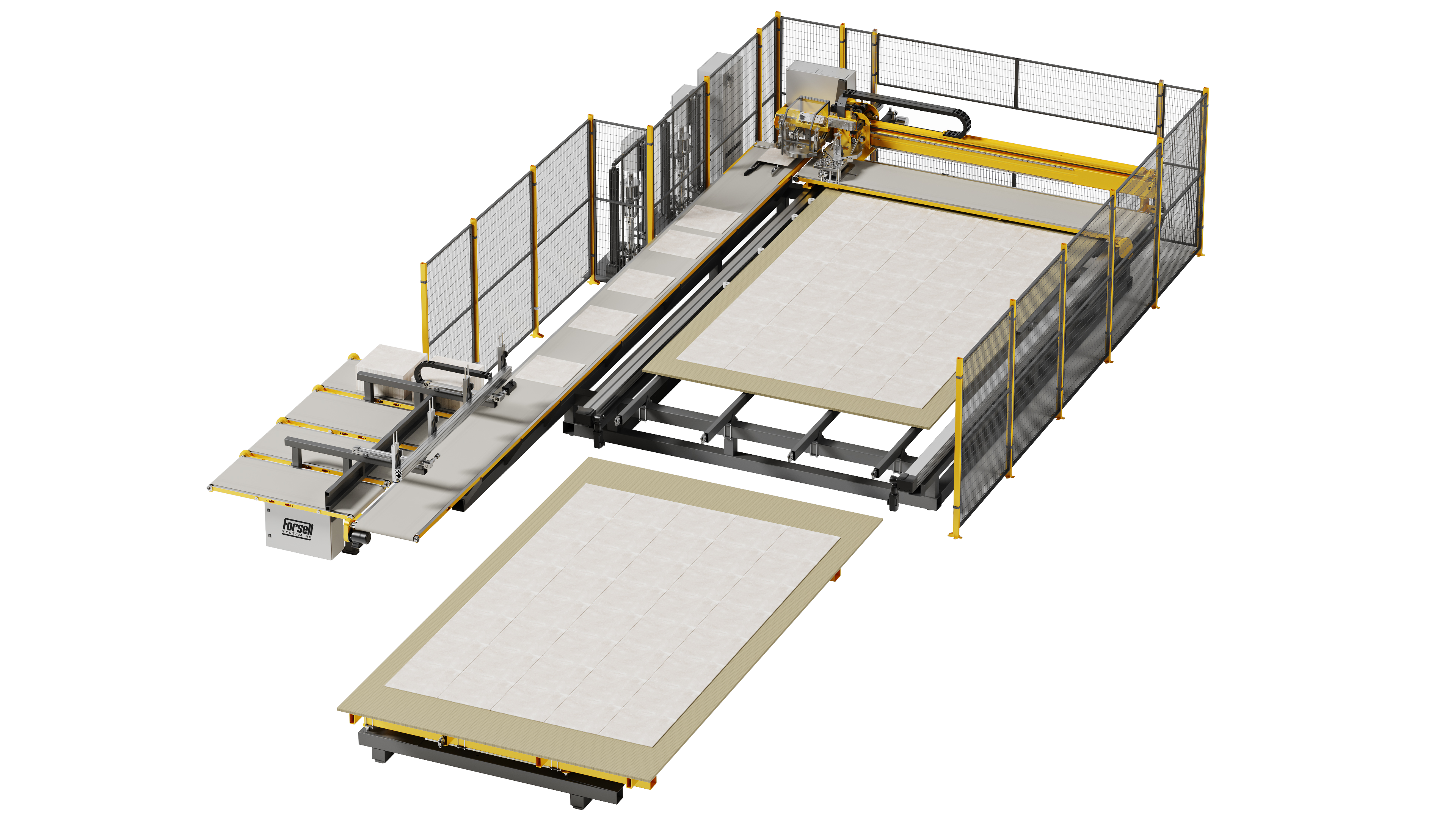

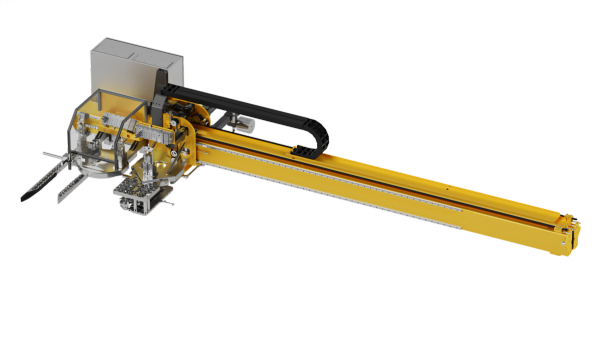

Tiling Machine Tiling Machine

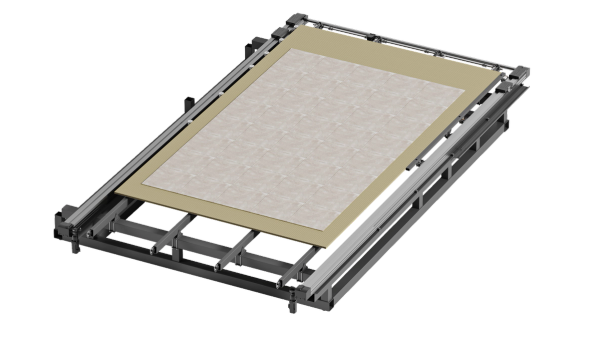

Tiling Table Tiling Table

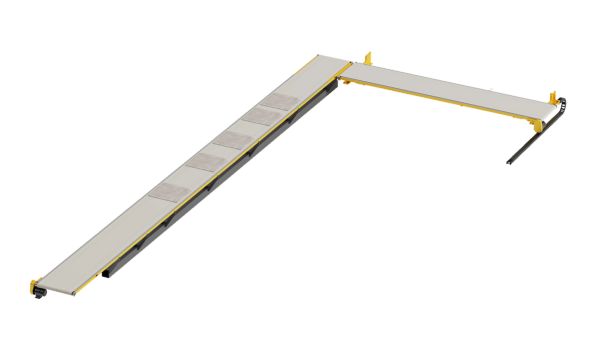

Tile Conveyor Tile Conveyor

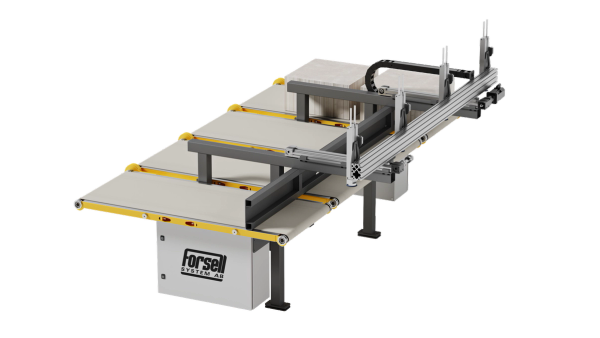

Tile Storage Tile Storage

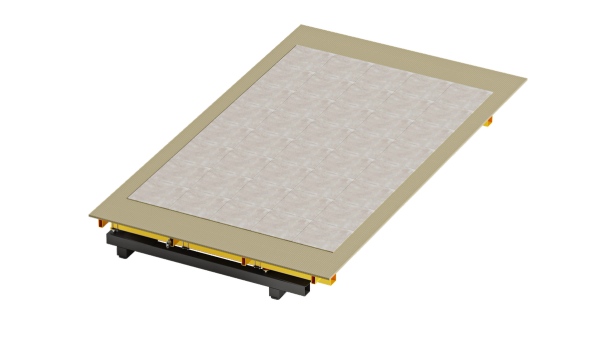

Inspection Table Inspection Table

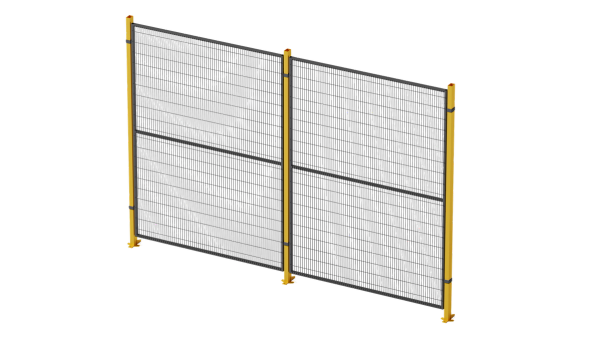

Safety Fencing Safety Fencing

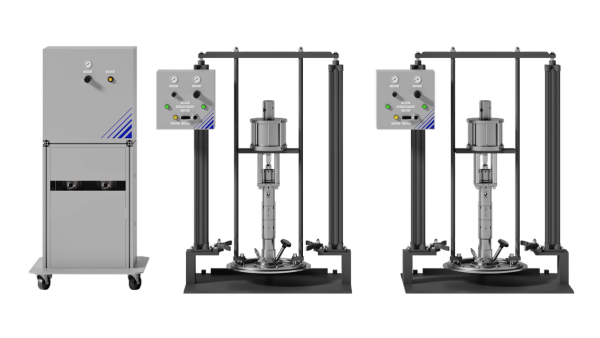

Adhesive Storage Adhesive Storage

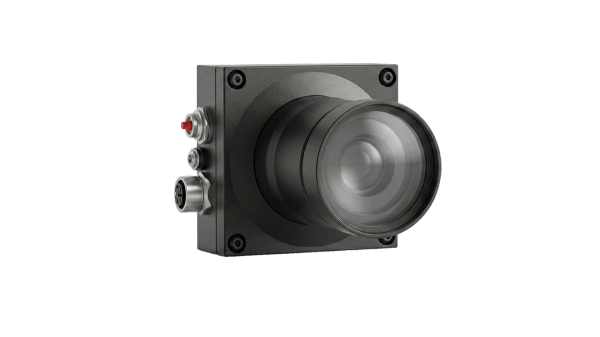

Vision System Vision System

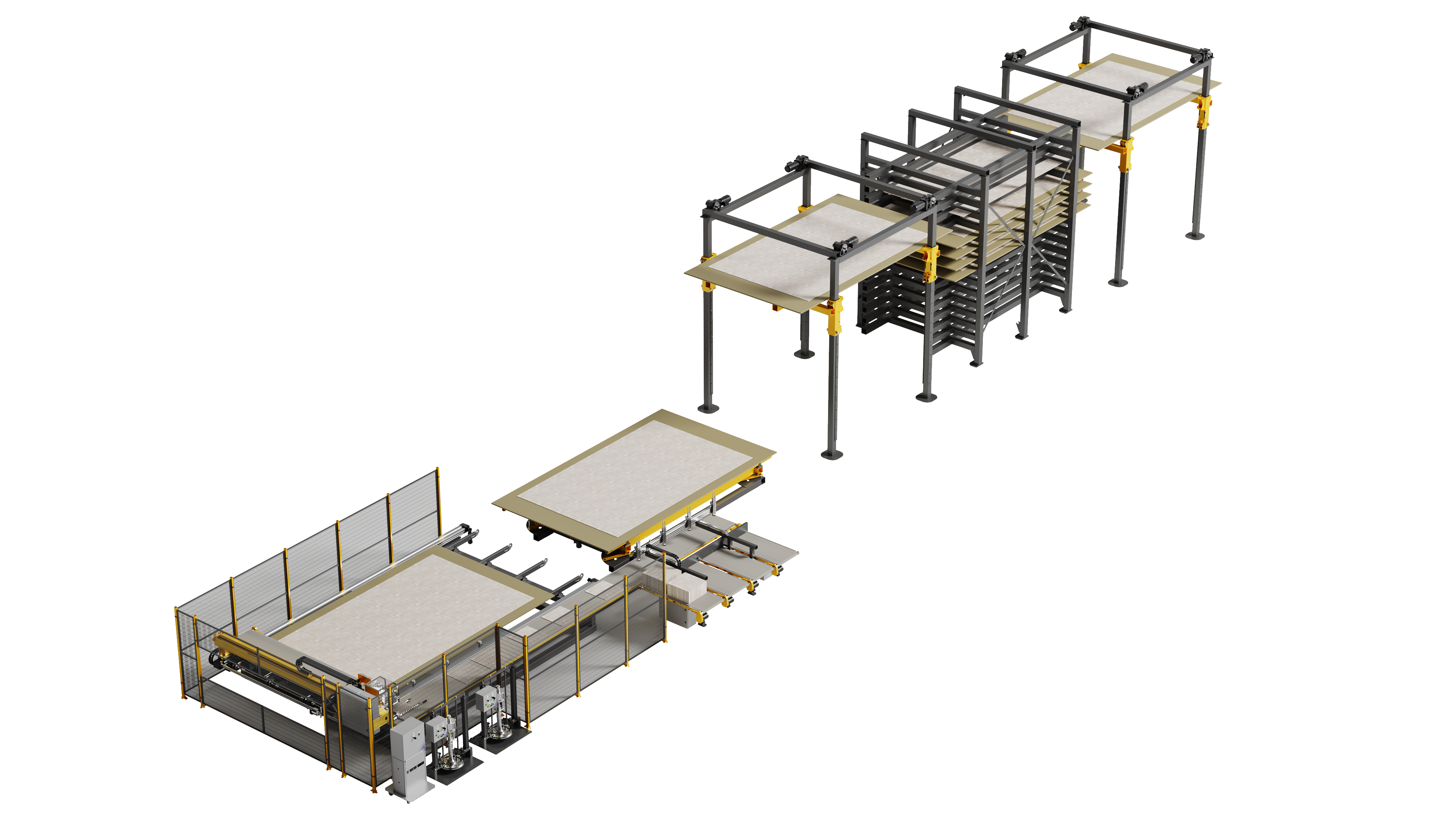

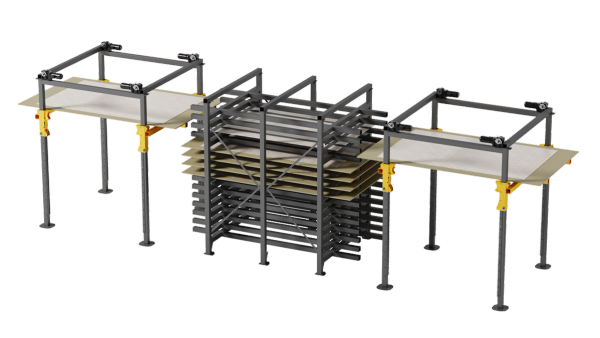

Drying Station Drying Station

Cycle Times

Tile size / Cycle time per tile
100 × 100 mm2.5 seconds
200 × 200 mm3 seconds
300 × 300 mm5 seconds
Tile size / Cycle time per tile
400 × 400 mm7 seconds
500 × 500 mm9 seconds
600 × 600 mm11 seconds
Modutile

Specifications

Modutile
Minimum tile size
100 × 100 mm
Maximum tile size
600 × 600 mm
Maximum element size
6000 × 3500 mm
Minimum element size
300 × 2000 mm
Maximum element thickness
400 mm
Minimum element thickness
50 mm
Maximum element weight
3000 kg
Drying Station Light
Number of slots
10
Capacity per slot
1000 kg
Total capacity
10 000 kg
Drying Station Heavy
Number of slots
10
Capacity per slot
3000 kg
Total capacity
30 000 kg

Photos

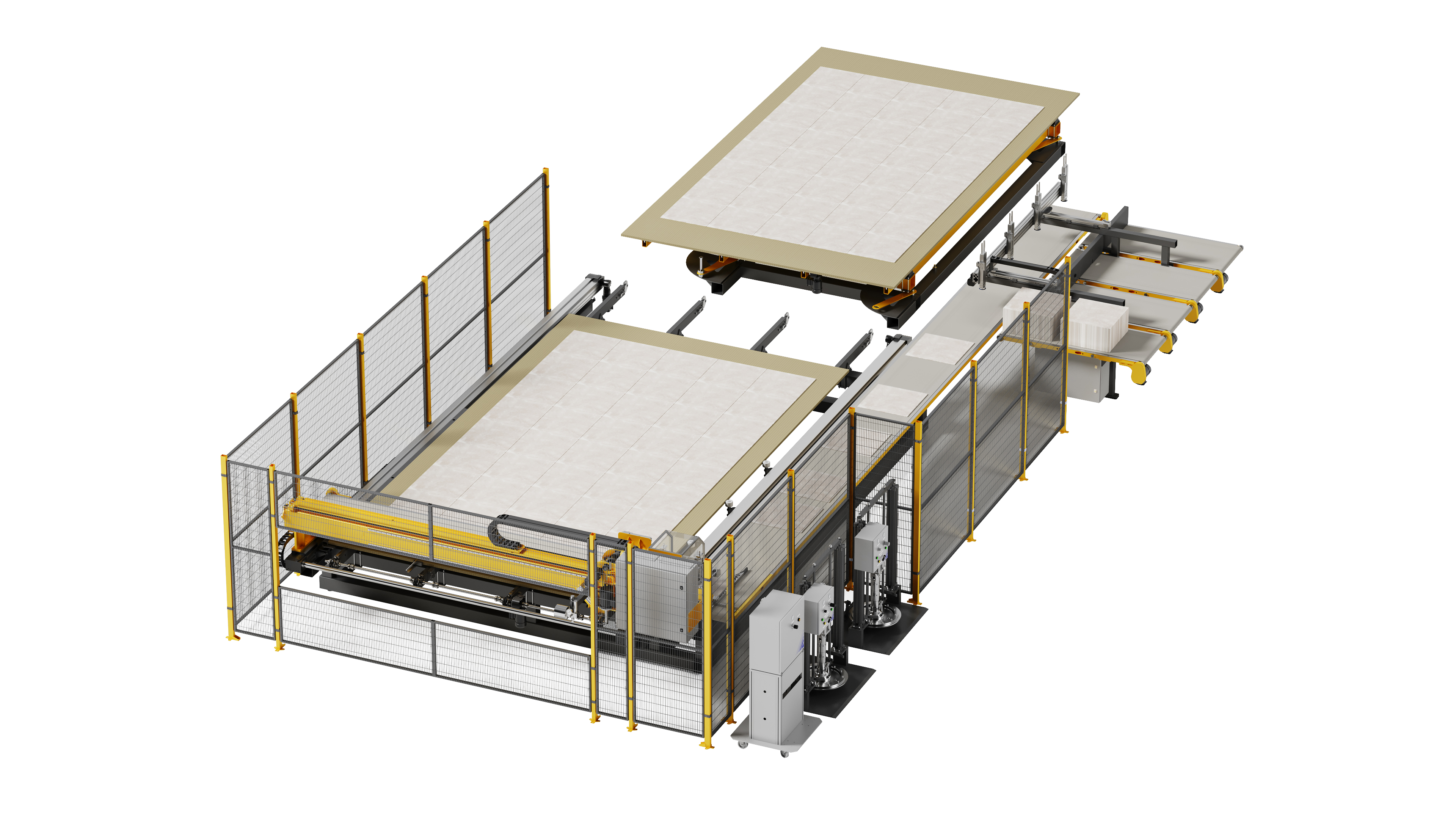

Modutile Drying Station Modutile in use
