Tiling

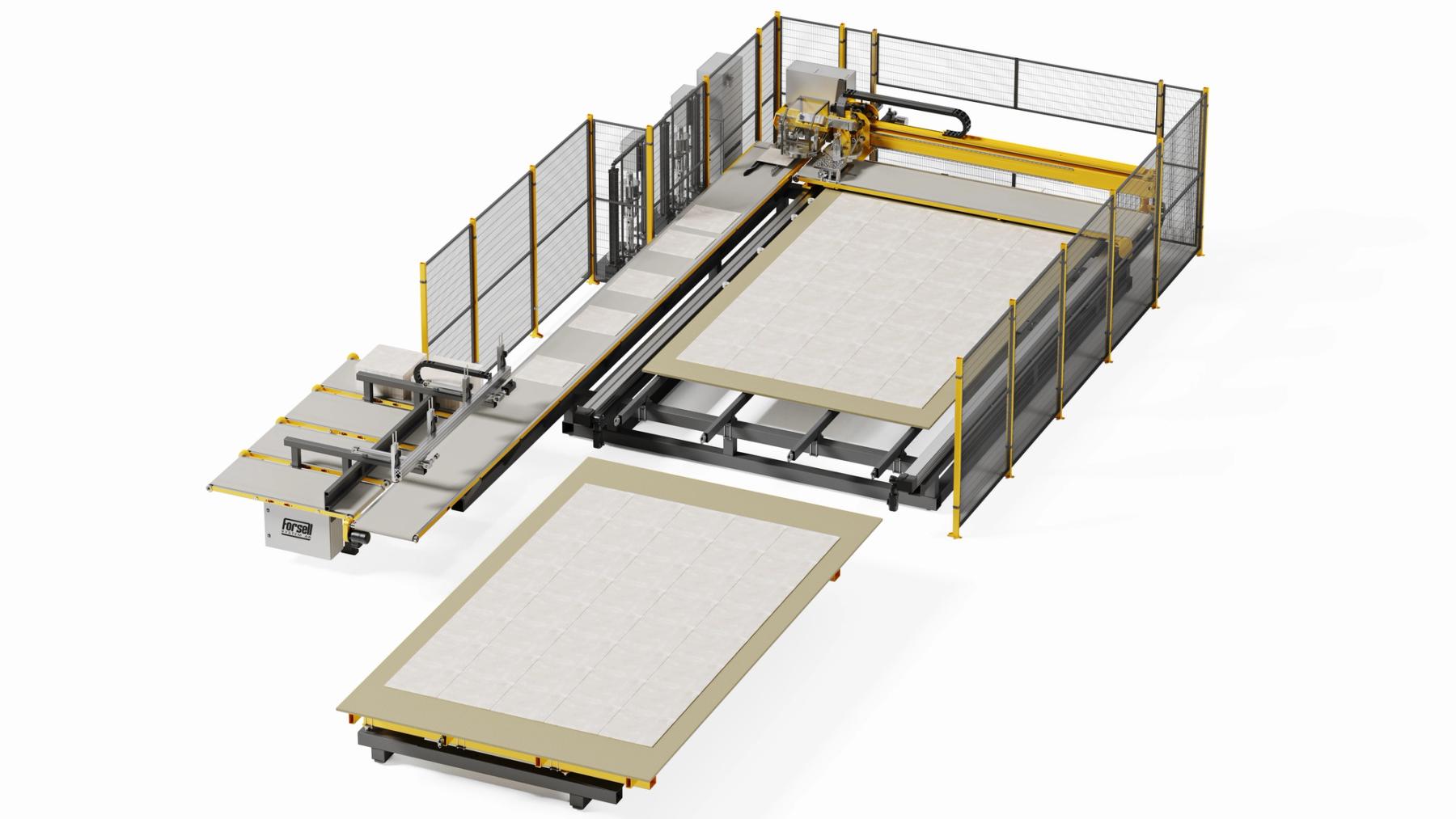

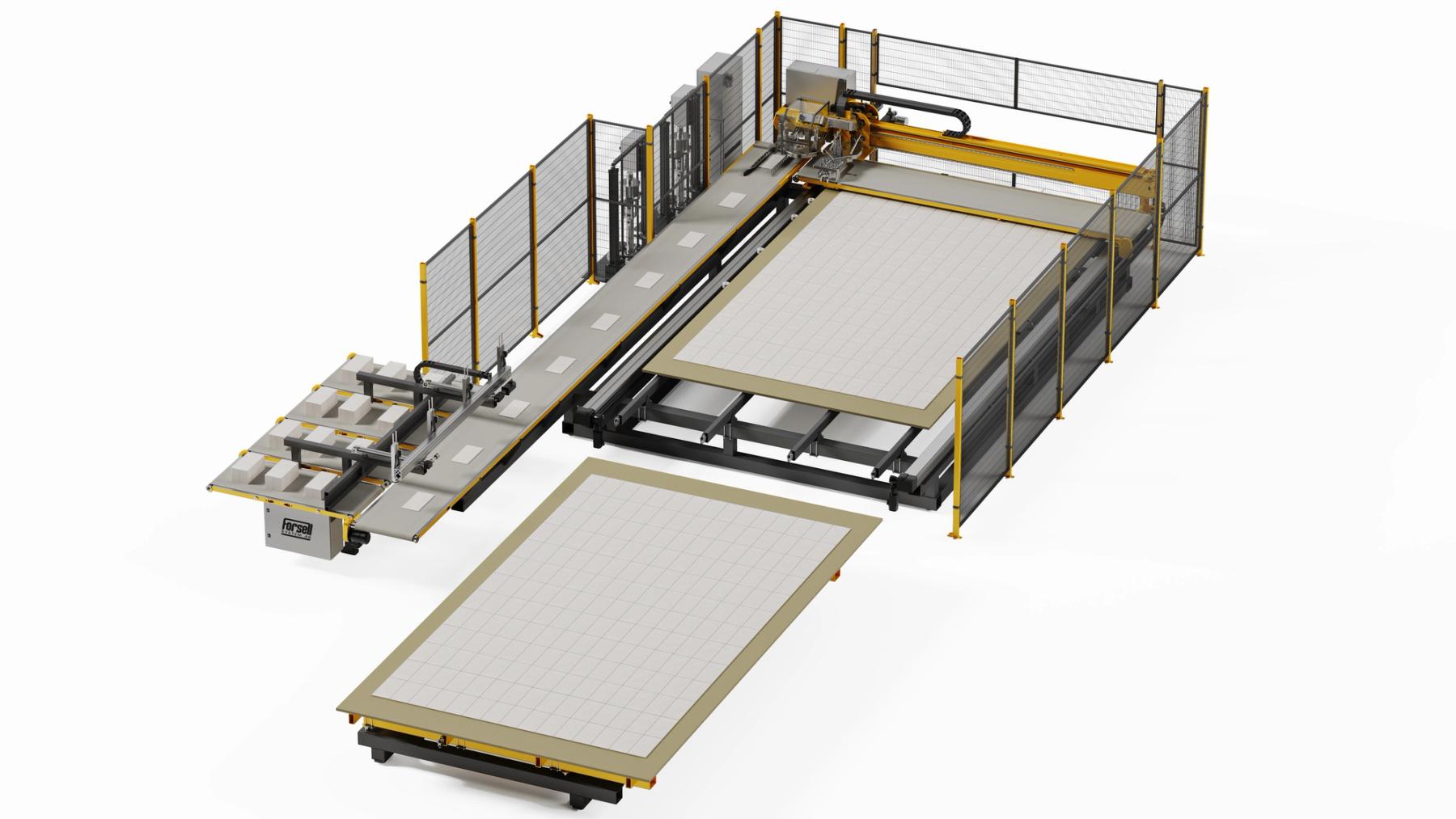

Modutile

An automatic tiling system for applying adhesive and laying tiles on horizontal elements. Handles various patterns and sizes with high precision. An integrated drying station ensures tiles are ready for the next production step without delays.

Product Sheet
Modutile

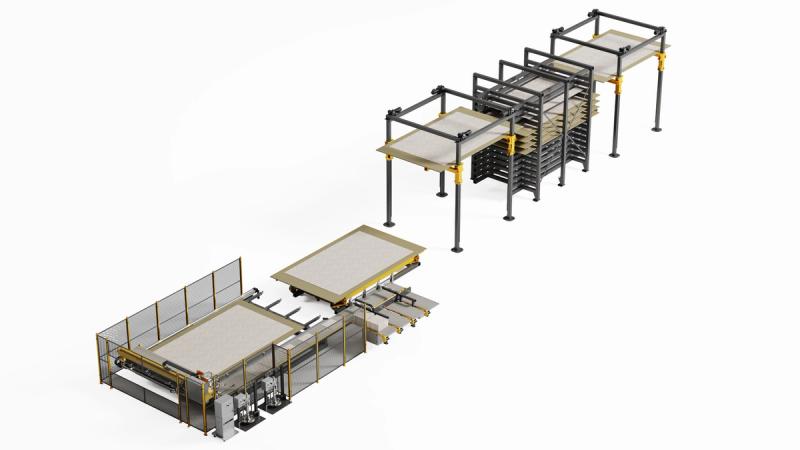

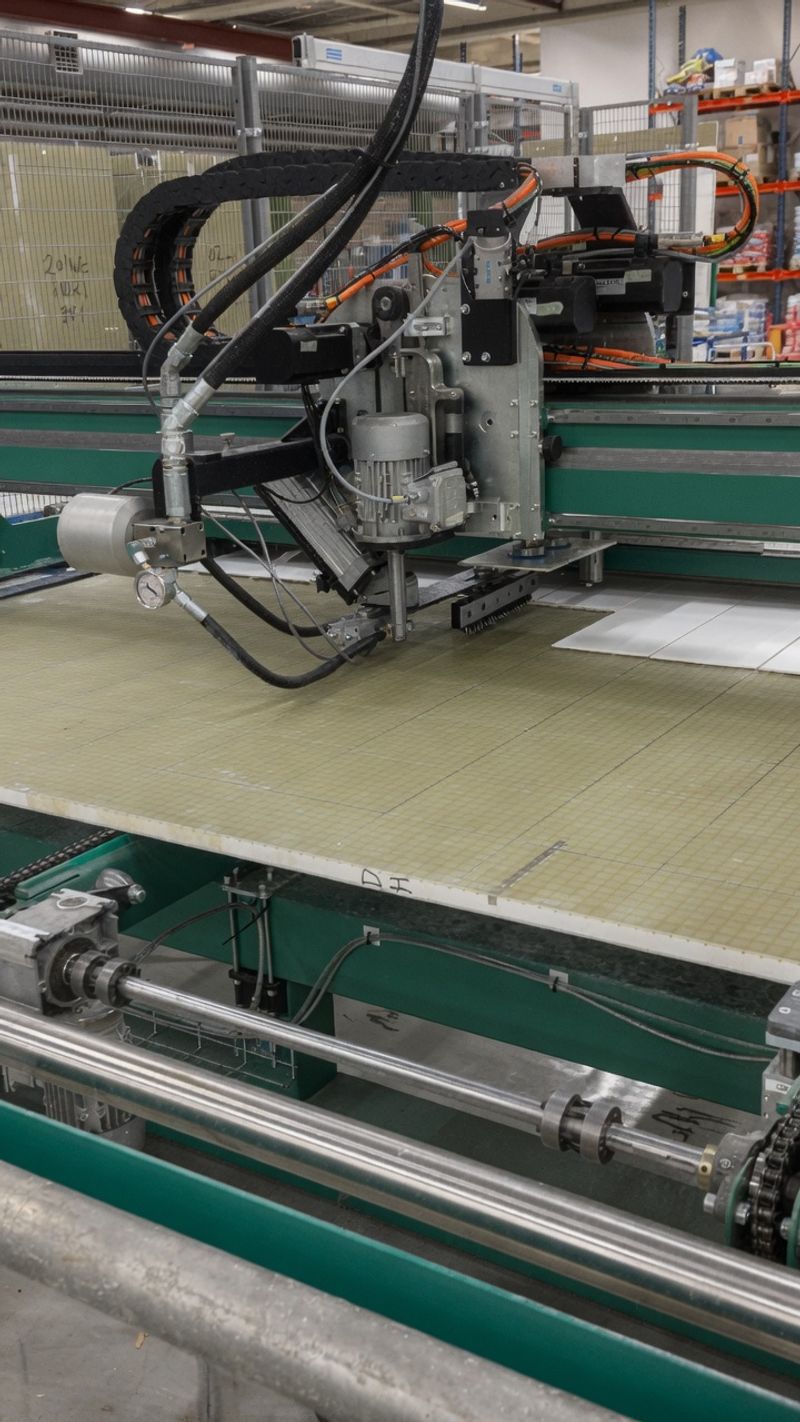

Modutile gallery

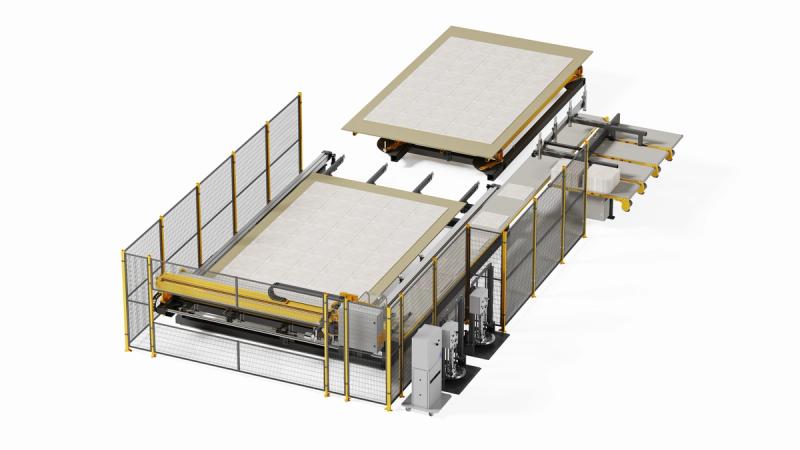

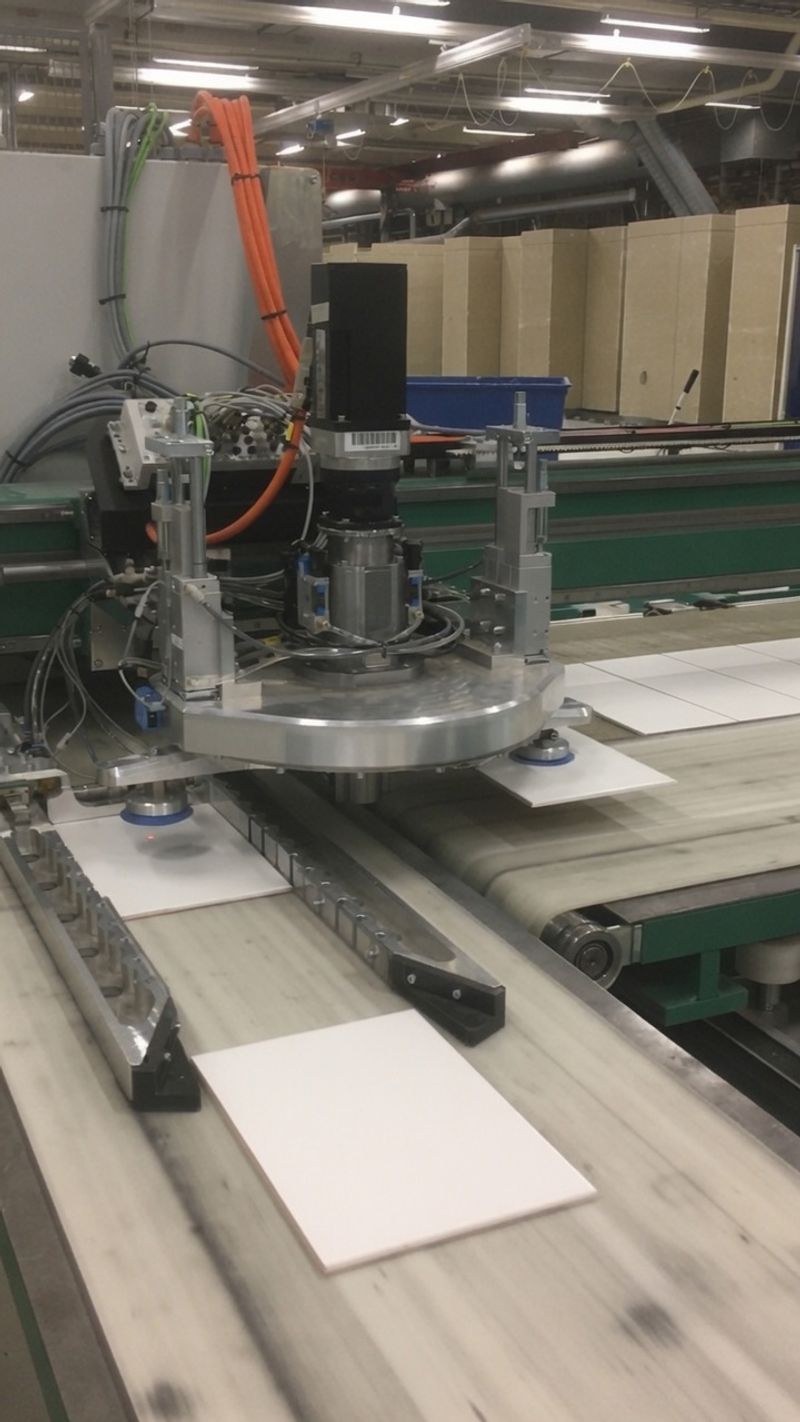

Modutile gallery

Features

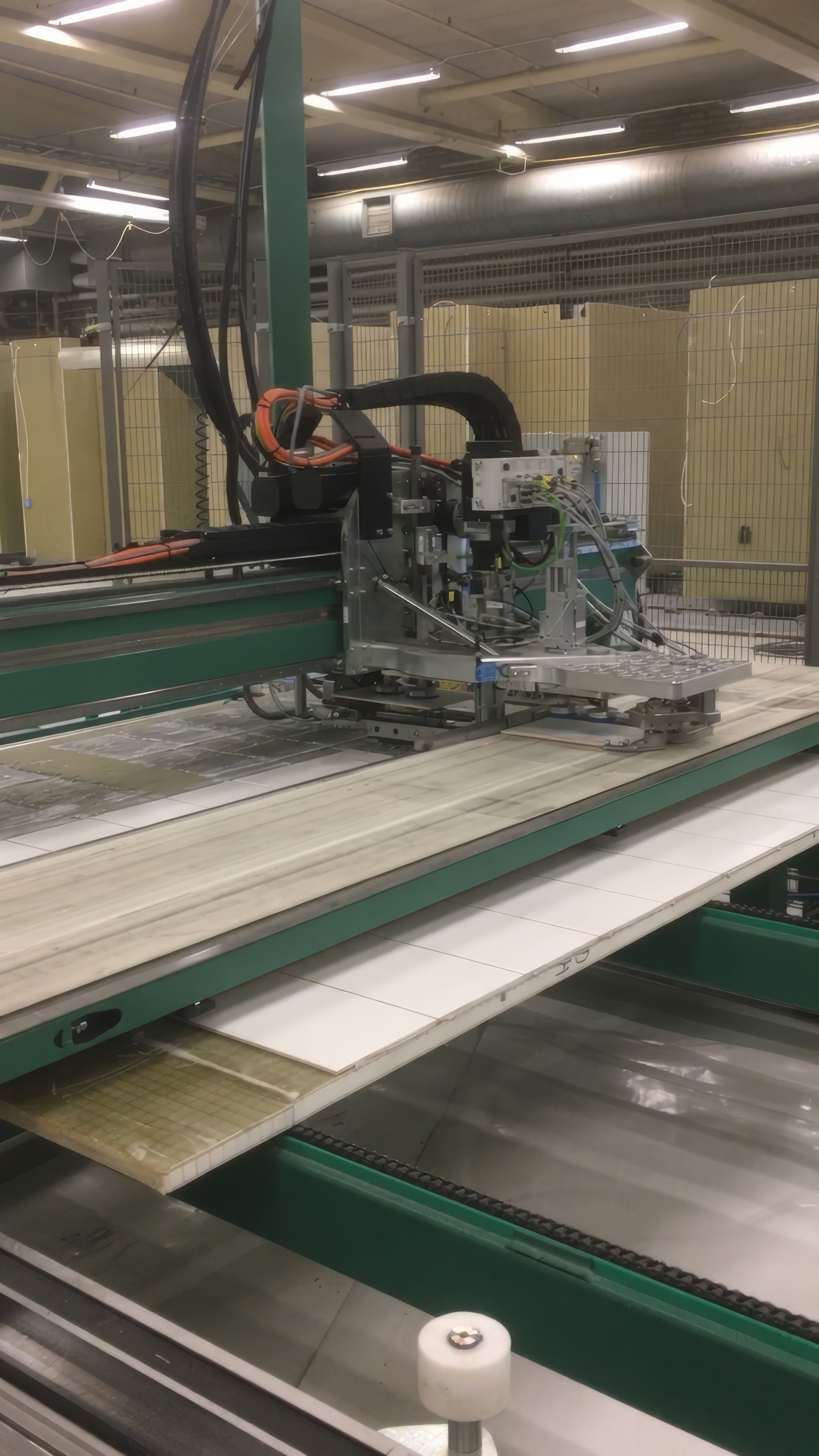

Automated tiling. Applies adhesive and lays tiles on horizontal elements, removing manual tile work from the production line. Less labor, more output, and consistent quality across every element.

Flexible patterns and sizes. Supports various tile patterns and sizes within the same production run.

Precision placement. A vision system ensures accurate tile positioning.

Integrated drying station. Available in light and heavy variants to match your element weights. Elements are dried and ready for the next production step without delays, keeping the line moving.

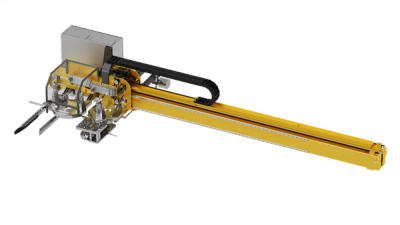

Tiling Machine Tiling Machine

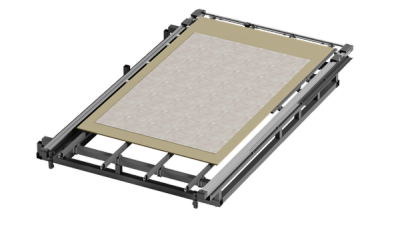

Tiling Table Tiling Table

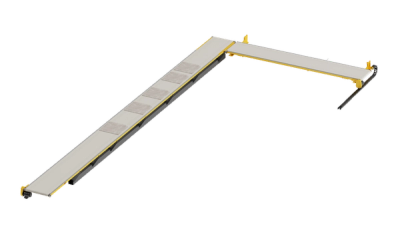

Tile Conveyor Tile Conveyor

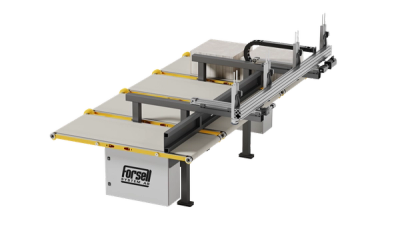

Tile Storage Tile Storage

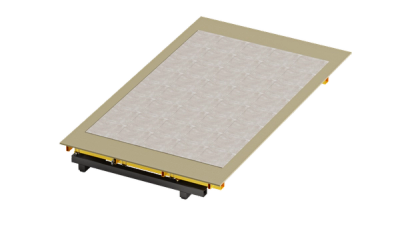

Inspection Table Inspection Table

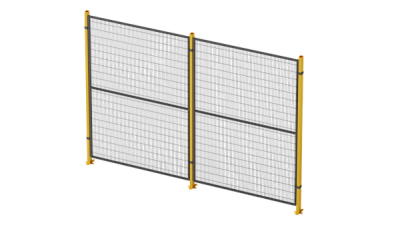

Safety Fencing Safety Fencing

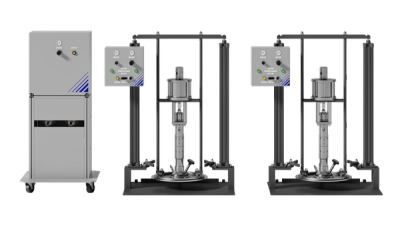

Adhesive Storage Adhesive Storage
Vision System Vision System

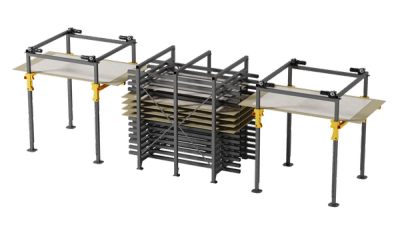

Drying Station Drying Station
Modutile
Minimum tile size
100 × 100 mm
Maximum tile size
600 × 600 mm
Maximum element size
6000 × 3500 mm
Minimum element size
300 × 2000 mm
Maximum element thickness
400 mm
Minimum element thickness
50 mm
Maximum element weight
3000 kg
Drying Station Light
Number of slots
10
Capacity per slot
1000 kg
Total capacity
10 000 kg
Drying Station Heavy
Number of slots
10
Capacity per slot
3000 kg
Total capacity
30 000 kg
Tile size
Cycle time per tile
100 × 100 mm
2.5 seconds
200 × 200 mm
3 seconds
300 × 300 mm
5 seconds
400 × 400 mm
7 seconds
500 × 500 mm
9 seconds
600 × 600 mm
11 seconds
