Module Handling

Skate System

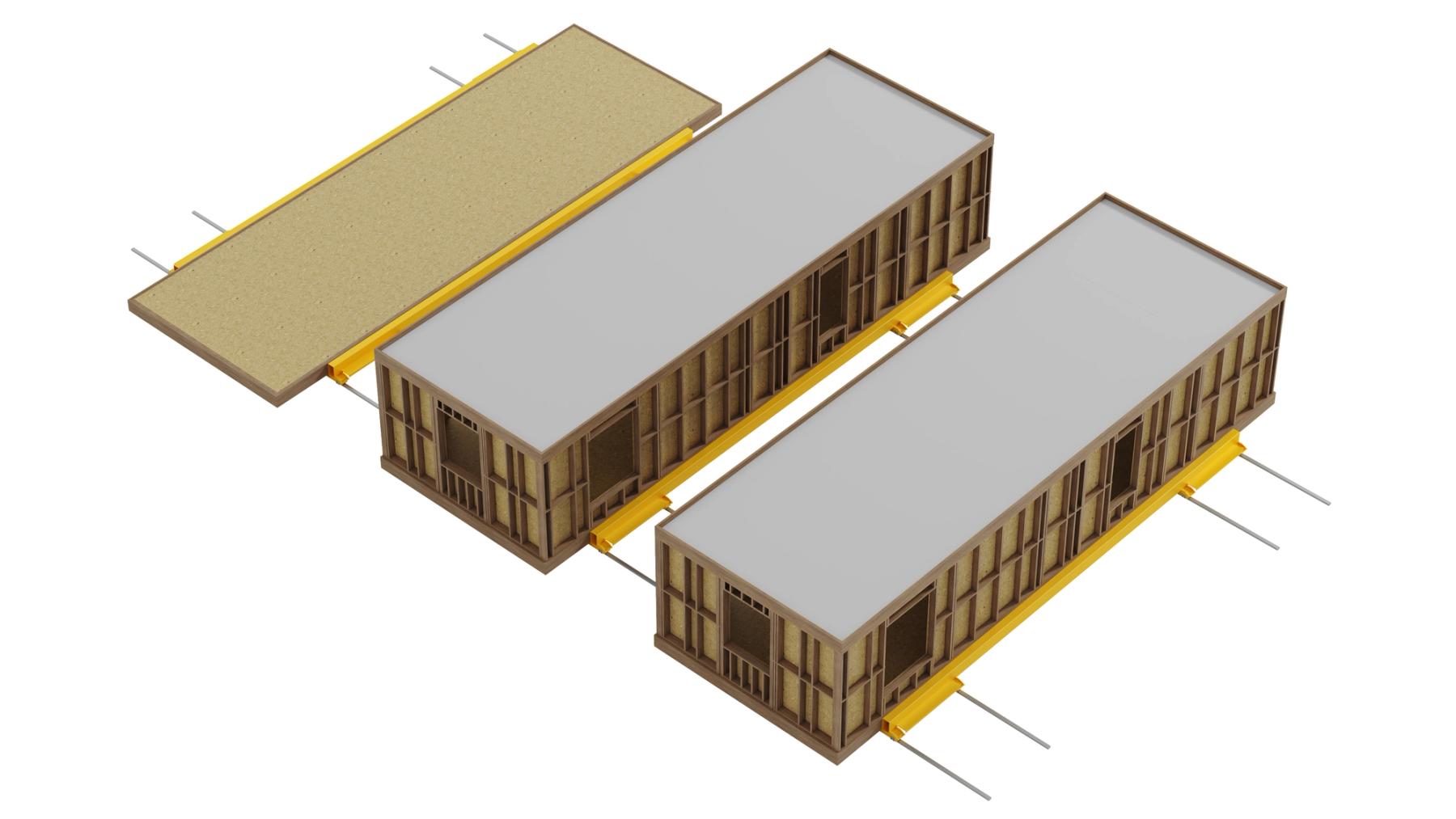

A manual, low-cost system for moving house modules forward. Modules move along a floor-mounted rail system on trolleys, pushed manually for a simple operation. Suitable for production where a simple, cost-effective solution is wanted.

Features

Low-cost and reliable
House modules roll on floor-mounted rails with minimal maintenance, giving you an assembly line without a large investment.
Manual or electric operation
The modules are moved forward by hand or with an electric tug. The tug is purchased separately.
Easy module lifting
The module rests on two floor beams, so it can be lifted straight off the trolleys for transfer or loading.
Configured for your production
The rails are tailored to your factory layout, and can be built with 90-degree turns.

In Production at Eastcut, Nova Scotia

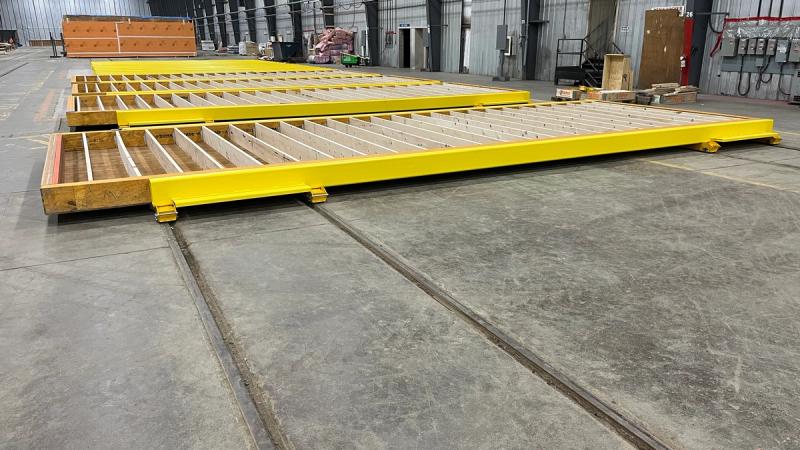

Eastcut is a Canadian company in industrialized house construction, a sister company of DORA Construction in the Macklan Group, manufacturing timber housing modules. In 2022 we delivered Skate System to their factory in Trenton.

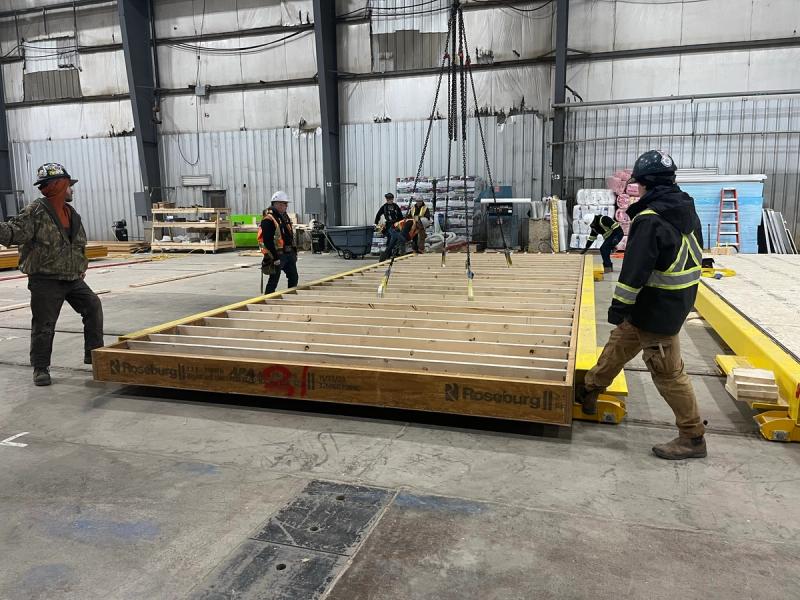

A floor cassette on the Skate System at the Eastcut factory

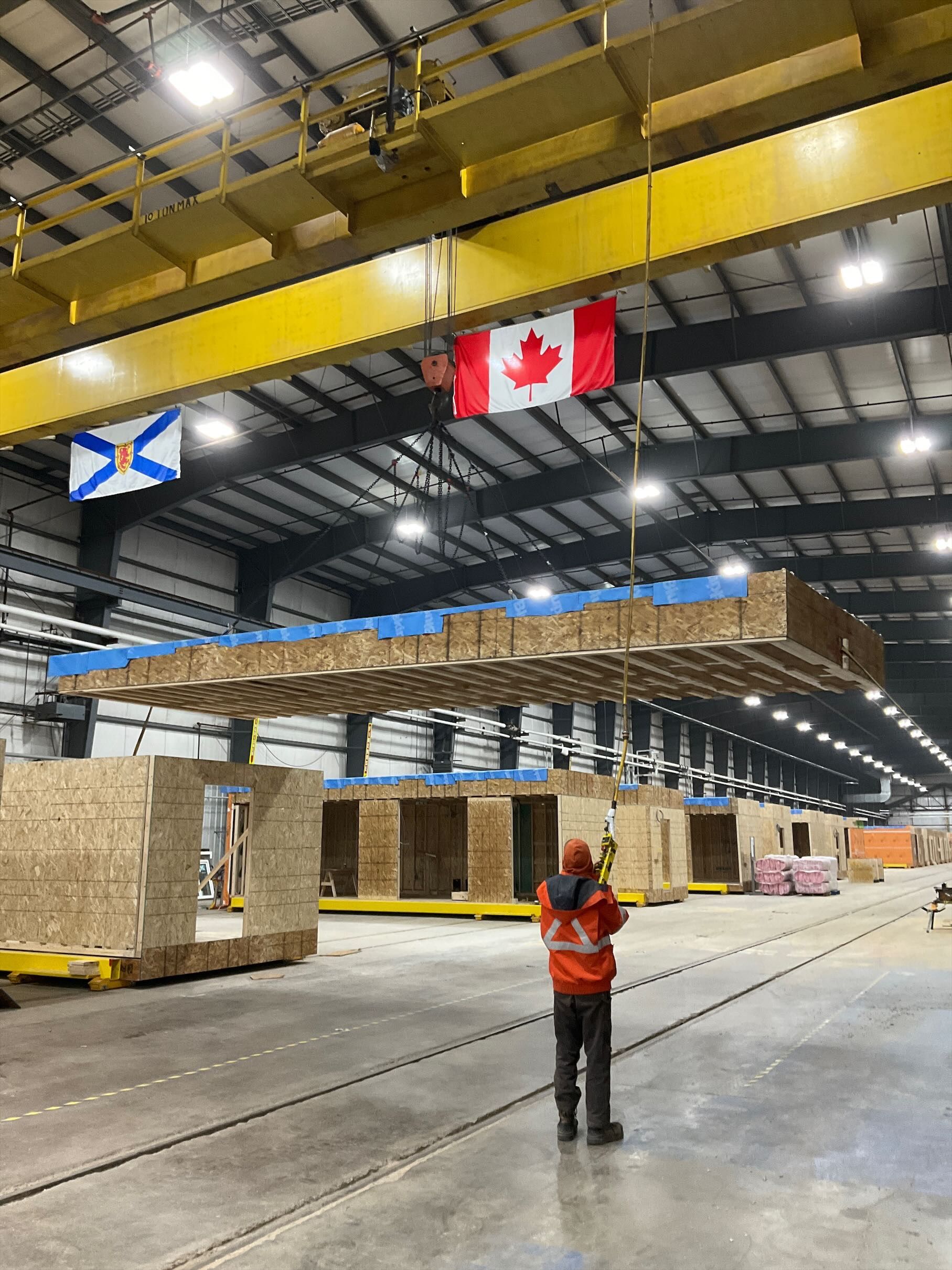

An operator guiding a house module lifted by overhead crane at the Eastcut factory in Trenton

Maximum module weight: 16000 kg
Maximum load per trolley: 2000 kg (8 trolleys per module)
Beams per module: 2
Maximum module size: Unlimited

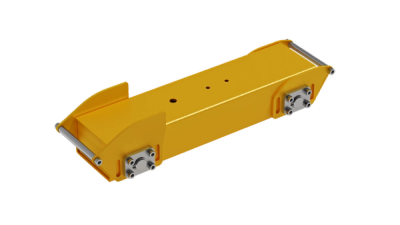

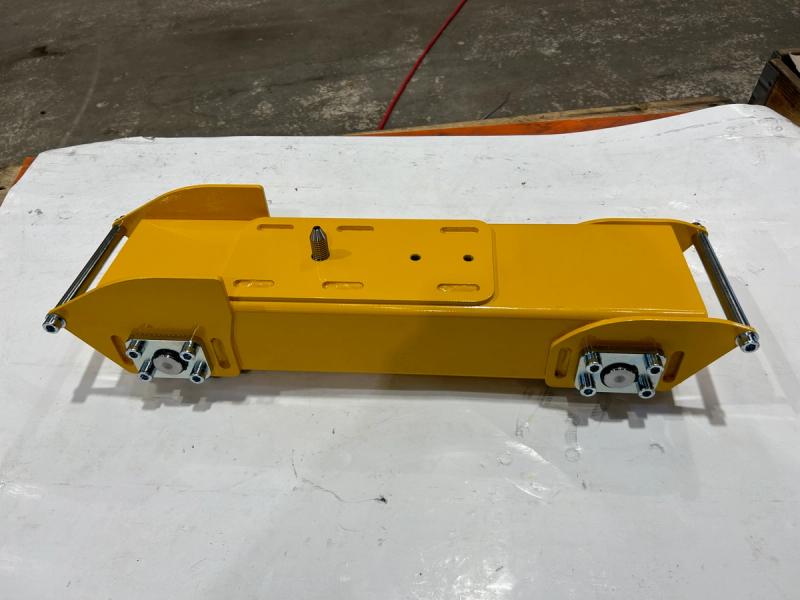

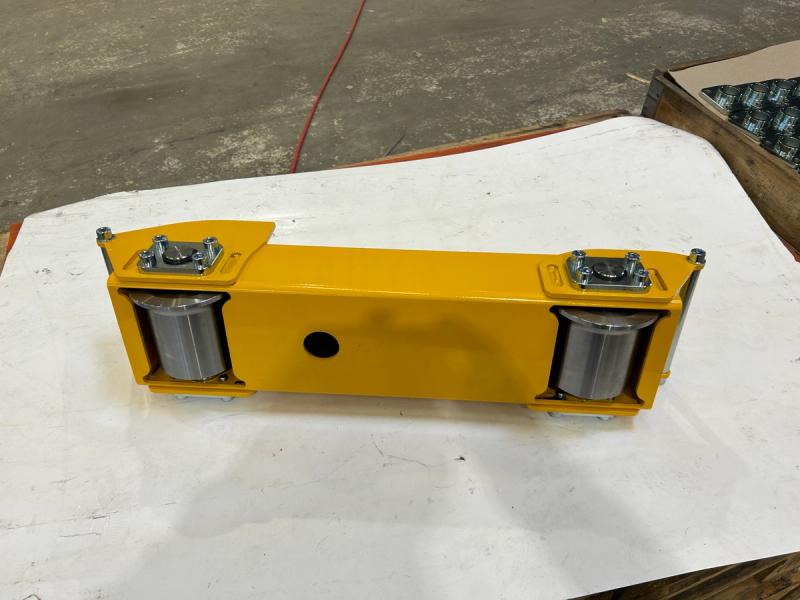

Trolleys

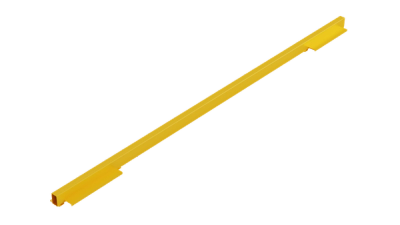

Floor Beams

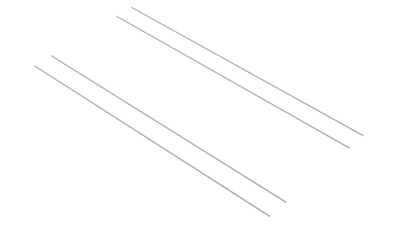

Rails

Interested in Skate System?

Get in touch with us to learn how Skate System can improve your production.
